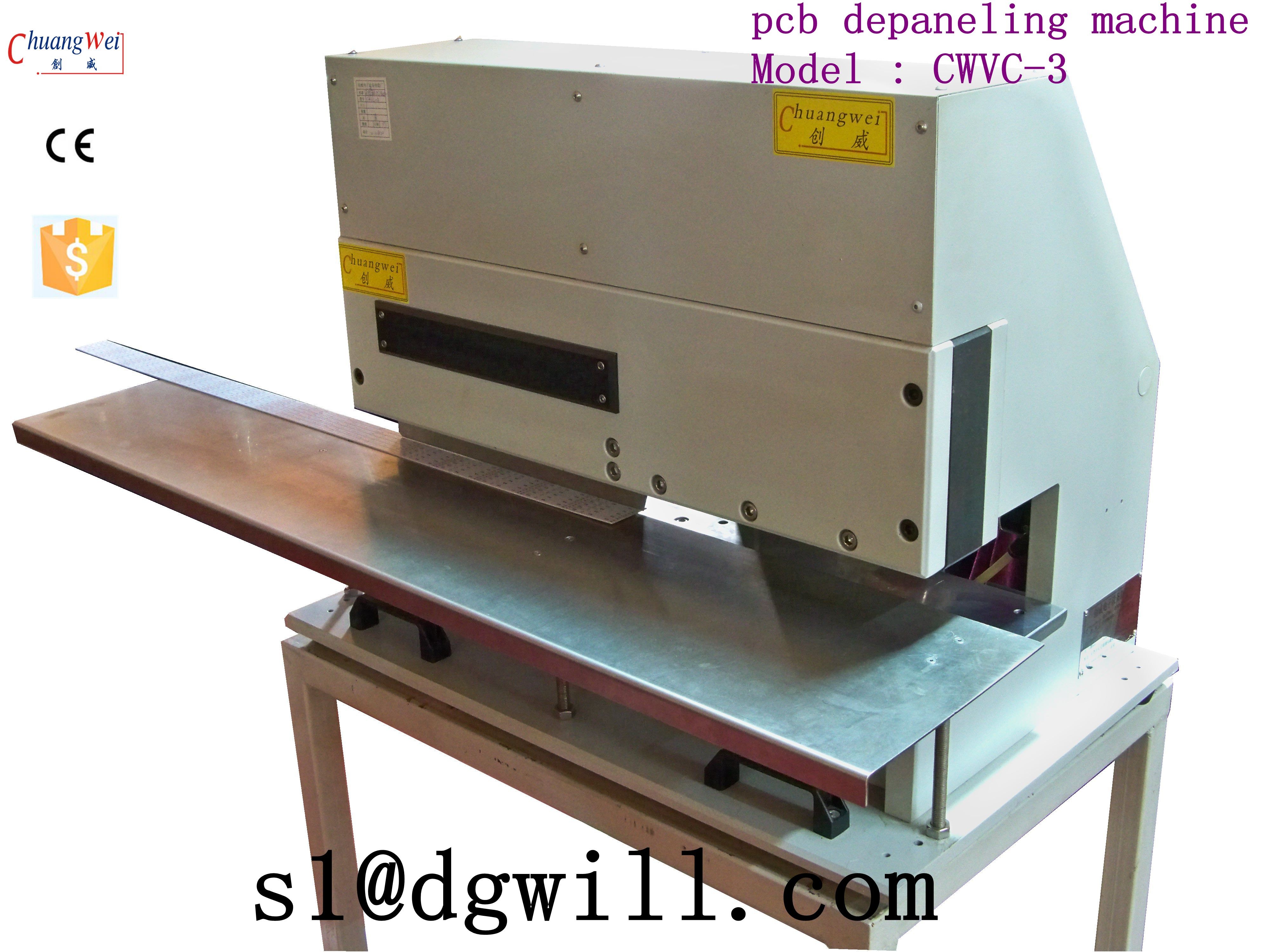

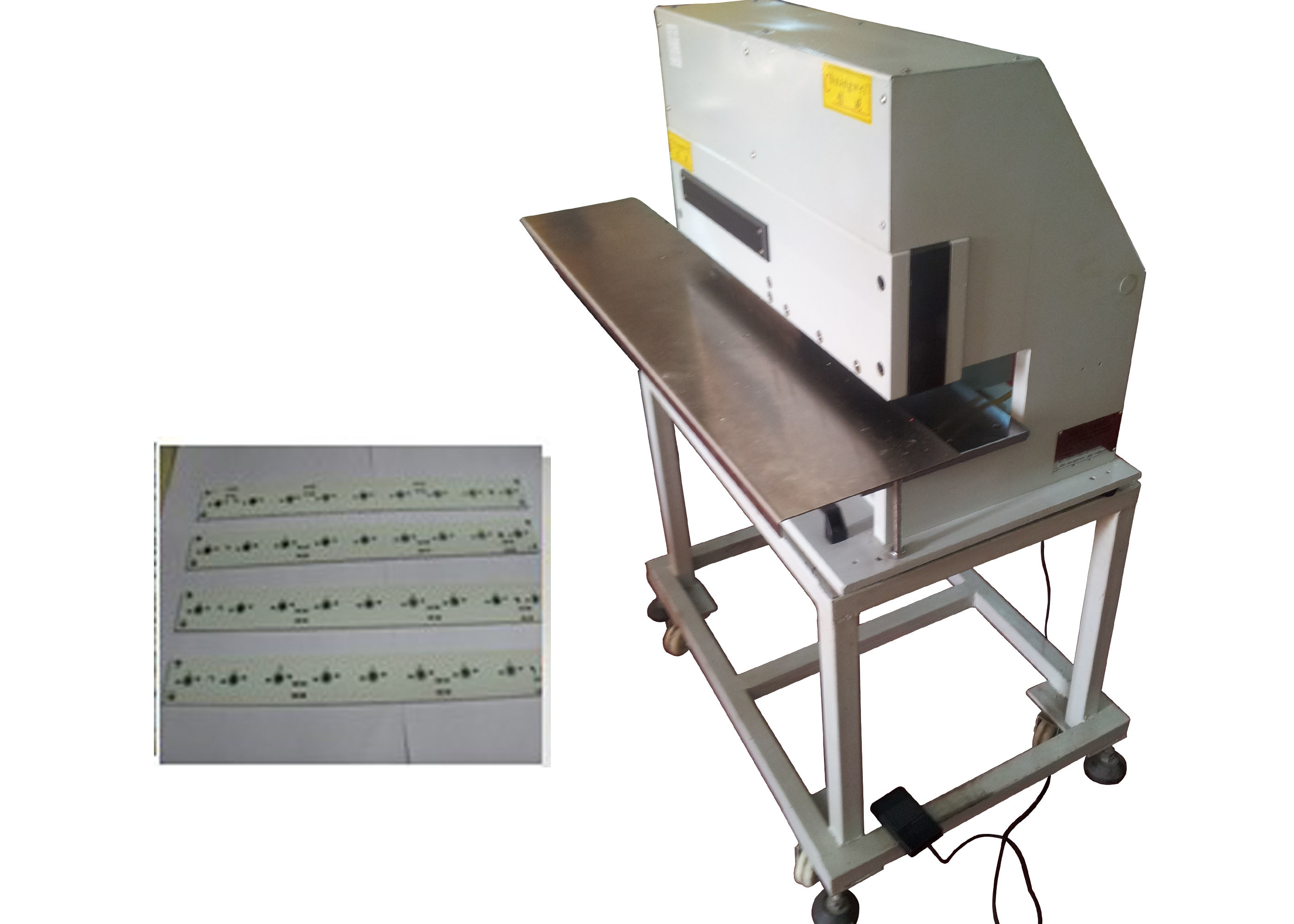

Led Alum Pcb Depanelizer Machine With Unlimited Cutting Length Specification:
|
Model |
CWVC-3 |
| The Max Cutting Length | unlimited |
| Machine size | 780*500*620mm |
| Machine weight | 185kg |
| cutting thickness | 0.3-3.5mm |
Features:
1) Separates boards up to 3.5mm thick
2) Shears boards safely with parts as close as 0.5mm to the score line,including ceramic capacitors
3) Operator foolproof! Panels cannot be inserted into the knives except on the score line
4) Handles high components up to70mm
5) Bow waves that can occur with round knives are avoided
6) Easy adjusting of distance between knives
Advantages:
- gap for insertion of the board can be adjusted easily by means of a knob in the front of the machine
- integrated waste suction prepared
- depaneling process without vibrations
- easy-to-service design
- pneumatically driven (FESTO)
- operation and maintenance possible without precognition
- high power reserves, operations already possible at 2 bar
- pneumatic control placed in a separate unit for easier maintenance
