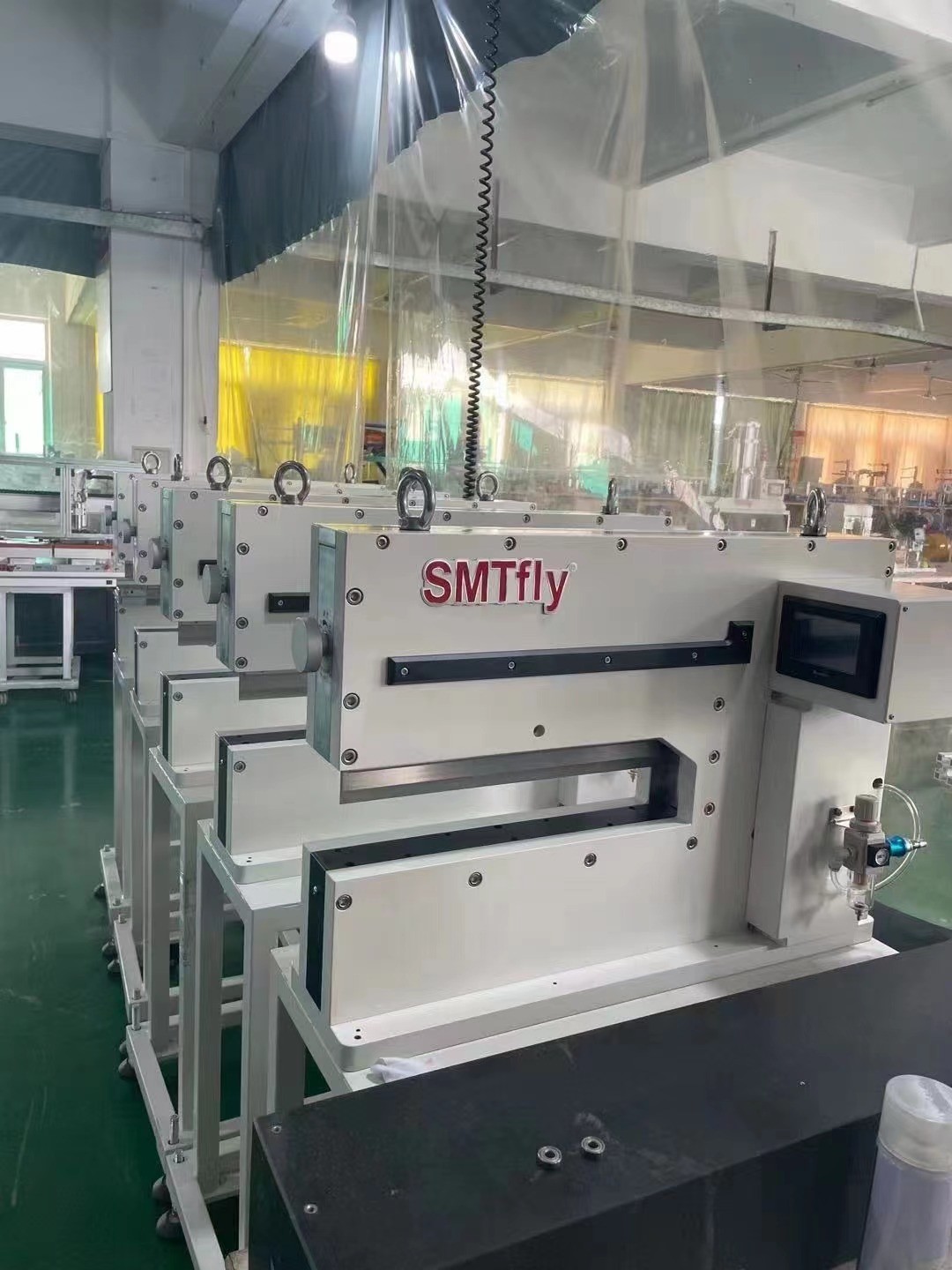

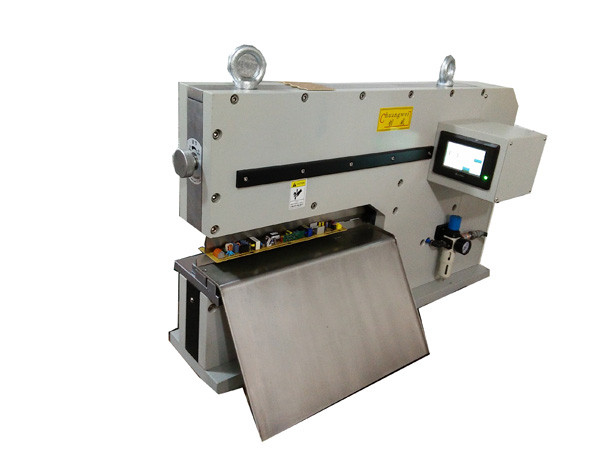

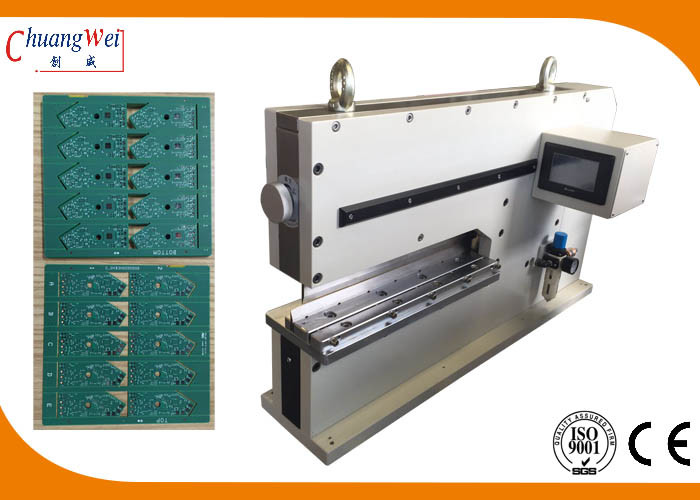

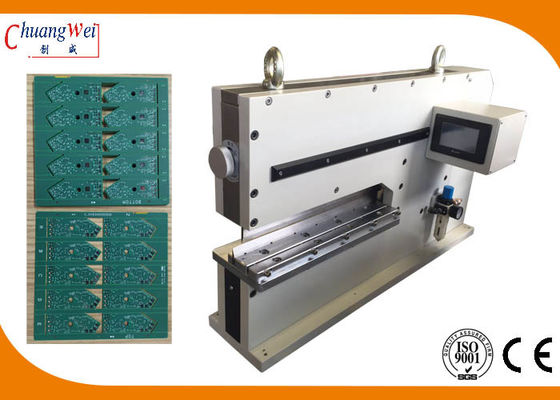

PCB Separator Machine For Metal Board With Linear Blade Advantage:
1. Nice for cutting v cut metal board,Aluminium PCB,LED strip,Copper PCB etc .
2. Separate rigid and thick board fluently .
3. Use pneumatic-driven and electromagnetic valve to operate .
PCB Separator Machine specifications:
| Model | CWVC - 450 |
| Linear Blades length | 450mm ( custom made ) |
| Material of blades | high speed steel |
| Max . PCB cutting length | unlimted |
| PCB cutting thickness | 0.3 - 3.5mm |
| Voltage and Power | 110V / 220V -- 10W |
| Working air pressure | 0.5 - 0.7Mpa |
| PCB cutting speed | due to operator skilled level |
| PCB cutting machine size | 900 * 760 * 750 |
| PCB cutting machine weight | 475 kg |
Pcb separator features:
1. New style rigid machine structure design,cut any length rigid and thick metal board more safely and easily .
2. cut long boards directly,without turning PCB direction .
3. Cutting process without vibrations due to pneumatic drive unit .
4. Cutting PCB without bending and tension stress .
5. PCB control operation is that operator stamps the foot pedal to cut PCB .
6. Highest components near the v groove of PCB can be up to 50mm .
7. Gap for insertion of PCB can be easy to adjust .
Company information:
1. From 2004 we started to development,manufacture,sale,service for PCB cutting machine, until now,we have produced different kind PCB cutting machine type for manual,motor-driven,pneumatic-driven,mold and die punching,milling cutter router etc.
2. You can depend on your company's condition and choose the most suitable one.
3. Also We can manufacture PCB cutting machine base your actual requires.
4. PCB cutting machine mainly applies to cut various shape,length and thickness Printed Circuit Board(PCB) which include Rigid PCB,Flexible PCB(FPC) and Rigid-flex PCB etc.For example electronic and digital products FR4 PCB,FR6 PCB,Aluminium PCB,Copper PCB, LED strips,LED tubes PCB,Solar energy PCB and different FPC etc.
5. Any interest please contact us freely.
